Eaton 5CK valves — pilot-to-close documentation
This section covers 5CK valves with a pilot-to-close function. Check the hydraulic symbol and how the pilot operates. These documents describe a different function from valves opened by pilot pressure.
Our store has its own language selector. Choose English in the store if needed. For a delivery enquiry, include your destination country and postcode.
Manufacturer documents are provided in their original language; the language may vary by file. Series-level ratings are a guide: check the exact model and operating conditions in its data sheet.
Eaton pilot-to-close check valves

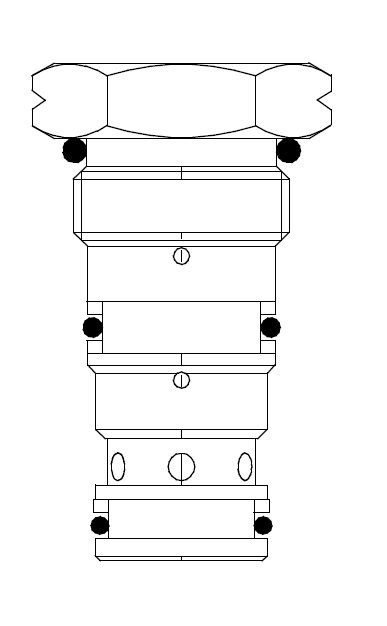

A pilot-to-close valve uses pilot pressure to close the check element, whereas a pilot-to-open valve uses it to open the element. Referenced models include Eaton 5CK30, 5CK120 and 5CK300. For pilot-to-open designs, return to the pilot-operated check valve documentation section.
What information should you prepare?
- Full 5CK valve code.
- Hydraulic symbol and required pilot function.
- Flow and pressure information.
- Cavity dimensions and mounting configuration.
Send the part number and a description of the application. We will check the configuration against the relevant documentation.
